284391-8
Manufacturer:
TE Connectivity
Mfr.Part #:
284391-8
Datasheet:
Description:

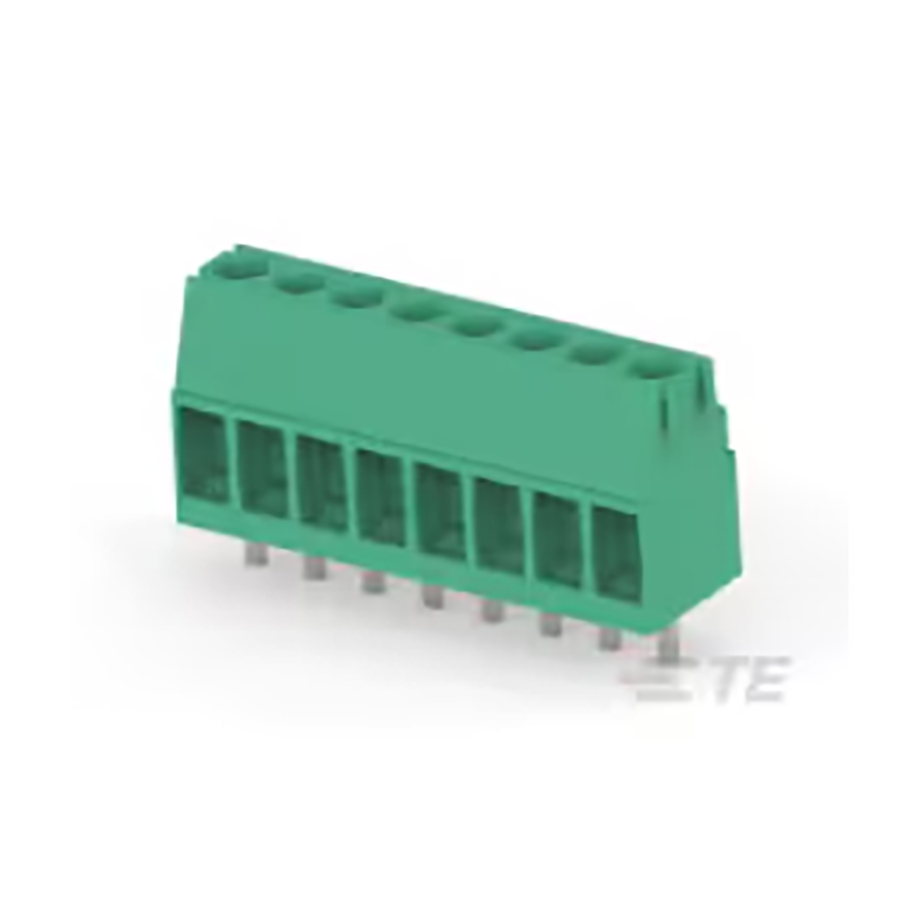

Terminal Blocks Through Hole 8 3.5 mm 12 A 300 V 30 AWG to 14 AWG
| Parameter | Value |
|---|---|
| Length | 28.5 mm |
| Termination | Screw |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Box |
| Voltage Rating | 300 V |
| Depth | 8.2 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Voltage | 300 V |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 3.5 mm |
| Current | 12 A |
| Current Rating | 12 A |
| Max Current Rating | 12 A |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 8 |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Color | Green |
| Number of Contacts | 8 |
| ELV | Compliant |
| Connector Type | Receptacle |
| Thread Size | M2 |
| Number of Positions | 8 |
| Number of Rows | 1 |
| Housing Material | Polyamide |
| Number of Positions Per Level | 8 |
| Number of Levels | 1 |
| Connector System | Wire-to-Board |
| Max Voltage Rating (AC) | 300 V |
| Max Supply Voltage (AC) | 300 V |
| Wire Gauge (Max) | 30 AWG |
| Wire Gauge (Min) | 30 AWG |
| Housing Color | Green |
| Plating | Brass |
| shrouded | Yes |
| Tail Length | 3.5 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Connection Method | Screw |
| Wire Gauge Range | 30 AWG to 14 AWG |
